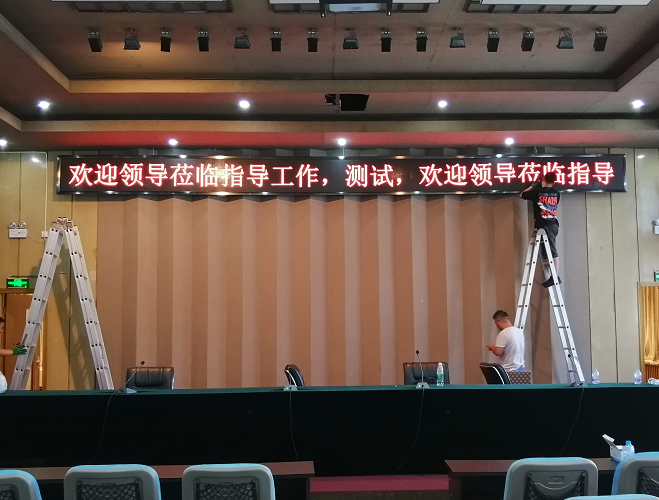

屏体外径：
7.39m*0.83m=6.13㎡
像素点的组成方式：1红1绿                                                                                                                                                     像素直径：3.7mm
像素间距：4.75mm                                                                                                                                                        单元板的尺模组尺寸:305mm×152mm
像素点的密度：44100点/ m²
单元板分辨率：64×32                                                                                                                                                    灰度等级：红绿各256级灰度
水平视角：> 70°                                                                                                                                                        最佳视距： 3～20米
工作电压：200v～240v                                                                                                                                                    功率消耗：150w/m²
控制方式：网口异步通讯（脱机显示）
刷新速率：120帧/秒                                                                                                                                                           通讯距离：不大于500米                                                                                                                                                                                  发光器件的寿命：大于等于10万小时
